รายละเอียดสินค้า:
|
| ขนาด: | 1100 มม.*532 มม.*389 มม. | โหลดทดสอบ: | 50n |
|---|---|---|---|
| มวลทดสอบ: | 1 กิโลกรัม | โรงงาน: | ใช่ |
| ทดสอบสโต๊ค: | 20 ถึง 60 มม. (ปรับได้) | มาตรฐานที่ใช้บังคับ: | EN ISO 8442-5 |
| ความแข็งแรงของหนีบ: | 130 + 2.5N | ใช้น้ำหนัก: | 1kg ± 0.1kg |
| การติดตั้ง: | สองการติดตั้งที่เหมาะสมที่เหมาะสมมีด | ทดสอบวงจร: | 15000 Cyclic (ปรับได้) |
| วิธีการทำความร้อน: | เครื่องทำความร้อนไฟฟ้า | บริการหลังการขาย: | การสนับสนุนด้านเทคนิคและการสนับสนุนวิดีโอออนไลน์ |
| เส้นผ่านศูนย์กลางของแท่งแรงบิด: | 10 ± 1 มม. | มาตรฐานการทดสอบ: | ASTM, ISO, EN, GB |
| การใช้งาน: | สำหรับการทดสอบคุณภาพและความปลอดภัยของเครื่องครัว |

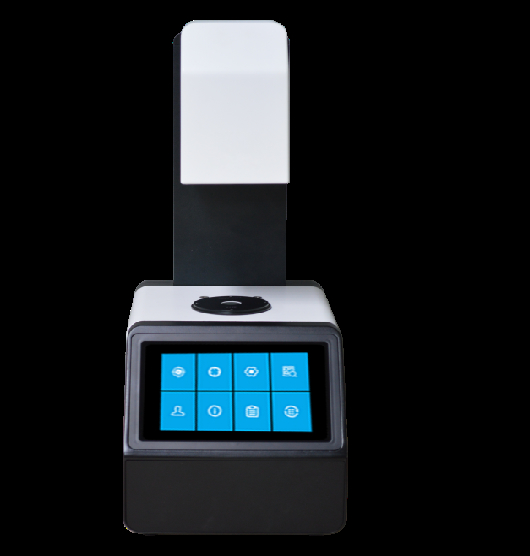

EQUIPMENT DETAILS OF 5096-HD LUMINOUS TRANSMITTANCE HAZE METER
***Picture for reference
DESCIBTION
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measuremen trequirement.
STANDARD
ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
FEATURE
1). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
8). Small size and light weight which makes it much easier to carry.
TECHNICAL PARAMETER
|
Measuring range |
0-100% |
|
Light source |
CIE-A,CIE-C,CIE-D65 |
|
Spectral Response |
CIE Luminosity function Y/V |
|
Geometry |
0/d |
|
Lighting and sample aperture size |
15mm/21mm |
|
Resolution |
0.01% |
|
Repeatability |
Light transmittance: ≤ 0.1% Haze: If H ≤ 10%, ≤ 0.05%; If H>10%, ≤0.1% |
|
Sample size |
Thickness ≤145mm |
|
Minimum reading |
0.1% |
|
Memory |
20000 value |
|
Interface |
USB |
|
DC24V |
|
|
Working environment |
|
|
Storage environment |
-20℃~50℃, RH≤80%, (under 35℃, No condensation of moisture) |
|
Machine size |
310 x 215 x 540mm |
|
Optional |
Fixture, haze standard plate, 5/7/10mm Custom Made Aperture |
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
