รายละเอียดสินค้า:
|
| การใช้งาน: | การควบคุมและทดสอบคุณภาพ | ความจุหม้อแปลง: | 1,000VA |
|---|---|---|---|
| ความเร็วในการกระแทก: | 3.4m/s | รันเวย์: | ความยาว 100 มม. |
| ขนาดภายนอก: | 900*500*800 (W*D*H) | มุมกระแทก: | 90 องศา |
| เครื่องทดสอบอุณหภูมิ: | อุณหภูมิห้องถึง 200°C | มิติ: | 650มม.×400×830มม |
| ช่วงเวลา: | 3 นาที (สามารถตั้งค่าโดยพลการ) | ช่วงการวัดปัจจุบัน: | 10pA ~ 1mA |
| โหลดการติดตั้ง: | 2.5N | โหมดผลิตโอโซน: | เครื่องผลิตโอโซนหรือวิธีการดูดกลืนรังสียูวี |
| ตามแนวนอน: | 500 มม. * 250 มม. * 500 ม. | ช่วงความหนาของชิ้นงาน: | 0 ~ 60 มม. |
| ขนาดตัวอย่าง: | 16 มม., 6-15 มม. (ลึก) | ผู้สังเกตการณ์: | CIE 10° นักสังเกตแบบมาตรฐาน |
| ข้อมูลจำเพาะ: | 20-88HRA, 20-100HRB, 20-70HRC | ความละเอียดของแรงดัน: | 0.001mpa (0.01bar หรือ 1psi) |
| ระบบทดสอบ A: | อุณหภูมิห้อง | จ่าย: | ดิจิตอล |
| ความเร็วในการทดสอบ: | ปรับได้ | น้ำหนักลูก: | 5 กิโลกรัม |
| มิติภายนอก: | 95x150x105cm | จังหวะการเจาะ: | 25 มม. |
| ความสม่ำเสมอของอุณหภูมิ: | ± 2 ℃ | การควบคุมความแม่นยำ: | ±0.2°ซ |
| เน้น: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |
||

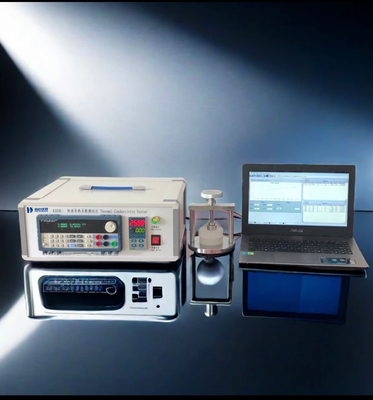

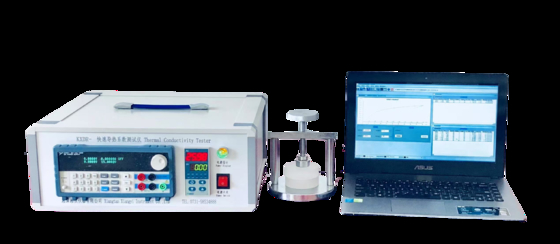

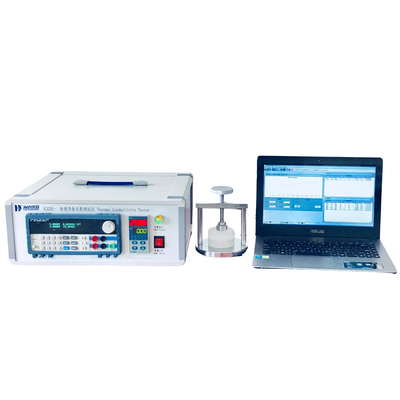

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
![]()
Technical Parameters
| Item | Parameters |
| Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
| Measurement relative error | ≤3% |
| Repeatability error | ≤3% |
| Temperature resolution | 0.01℃ |
| Measuring time | 2~180 seconds |
| Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
| Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
| Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
| Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
| Control mode | By computer and software |
| Machine dimension | (L*W*H)380*400*165mm |
| Machine weight | Approx. 5KG |
| Power | AC 220V±10%, 50/60 Hz, 200W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
