รายละเอียดสินค้า:
|
| ขนาดสถานที่ทำงานที่มีประสิทธิภาพ: | 280*170*120 มม. | ความแม่นยำของอุณหภูมิ: | ± 0.2 °C |
|---|---|---|---|
| มุมลูกตุ้ม: | 150° | ความจุ: | 1-1.5,2-2.5/3-3.5T/H |
| แรงแทรก: | 0~50กก | โหมดจับเวลา: | เคาน์เตอร์ขึ้นลง |
| มาตรฐานการออกแบบ: | HS 80 ± 5 | ความเร็วในการทดสอบ: | 5 ~ 60 รอบ/นาที |
| มุมกระแทก: | 90 องศา | ความยาวของลูกตุ้ม: | 200 มม. |
| กำจัดข้อมูล: | ซีพียู | มุมลอก: | 90 ° |
| การวัดหัวคมชัด: | 35 °, 30 ° | ขนาดเตา: | φ45mm*350 มม. |

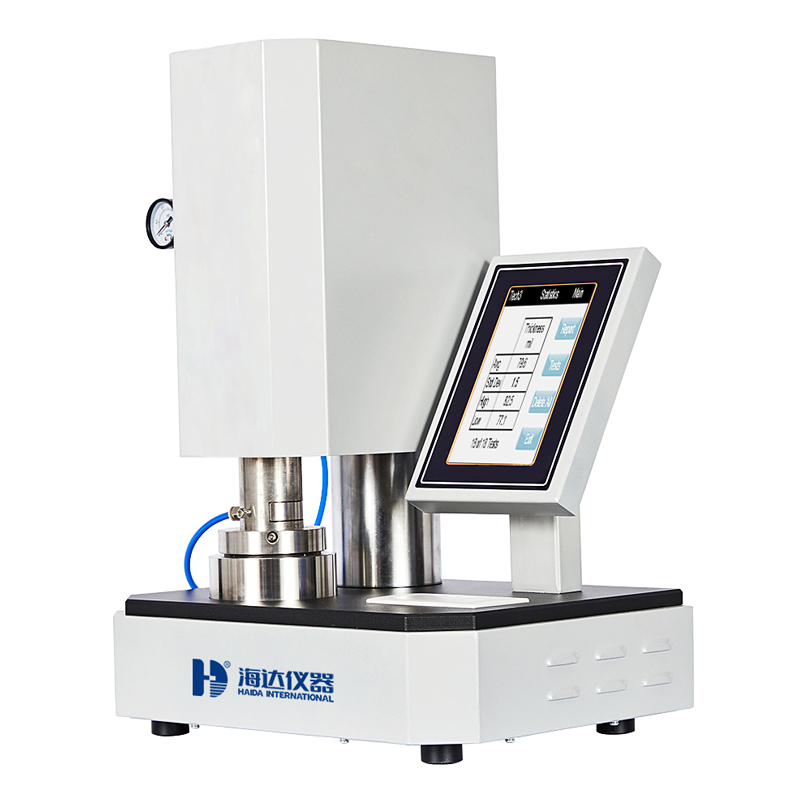

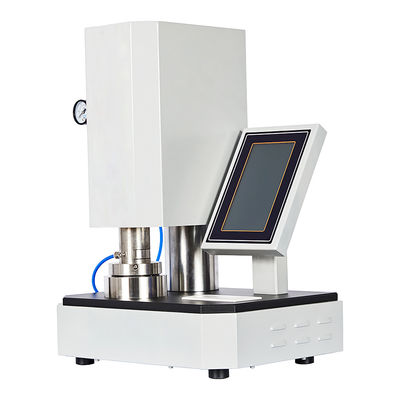

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
DESCRIPTION
Thickness tester is used for thickness determination of film.
DESIGN STANDATD
GB/T 6672,ISO 4593
PRODUCT FEATURES
1. One-click test, easy to operate.
2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.
3. Automatic measurement, statistics, print test results, and has a data saving function
TECHNICAL PARAMETERS
|
Item |
Description |
|
Display |
7-inch touch screen display |
|
Measure range |
(0~2)mm |
|
Resolution |
0.0001mm |
|
Indication error |
±1um |
|
Repeatability |
±1um |
|
Measuring parallelism |
≤0.002mm |
|
Contact area |
50 mm2 |
|
Contact pressure |
film (17.5 ± 1) kPa |
|
Probe descent rate |
0.5~10mm/s(adjustable) |
|
Data storage |
50 times test data |
|
Result Output |
USB flash drive data export |
|
|
Thermal printer |
|
l Communication interface |
USB, WIFI(2.4G) |
|
Dimension |
365x255x440 mm(L*W*H) |
|
Net weight |
27Kg |
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
