รายละเอียดสินค้า:
|
| เวลาฉีด: | 0-9999S [ปรับได้] | ความละเอียดของแรงบิด: | 0.001NM |
|---|---|---|---|
| การรับประกัน: | 1 ปี | วิธีการปฏิบัติการ: | การควบคุมไฟฟ้า |
| พลังความร้อน: | 4kW | เวลาชาร์จ: | 0 ~ 999 ·โปรแกรมได้ |
| ช่วงทดสอบ: | 0.005-300W/ ((m*K) | ความแม่นยำในการเคลื่อนที่: | 0.01 มม. |
| ลูกสูบ: | เส้นผ่านศูนย์กลาง 9.4742 ± 0.0076 มม. | การใช้งาน: | การทดสอบ |
| ระบบทดสอบ A: | อุณหภูมิห้อง | ความเร็วในการกรอง: | 0 ~ 150 รอบต่อนาที |
| ช่วงอุณหภูมิ: | อุณหภูมิปกติ-30 ° Cor -50 ° C | ผู้ถือตัวอย่าง: | ความกว้างร่องด้านใน 12 มม. |
| ขนาดภายนอก: | 900*500*800 (W*D*H) |

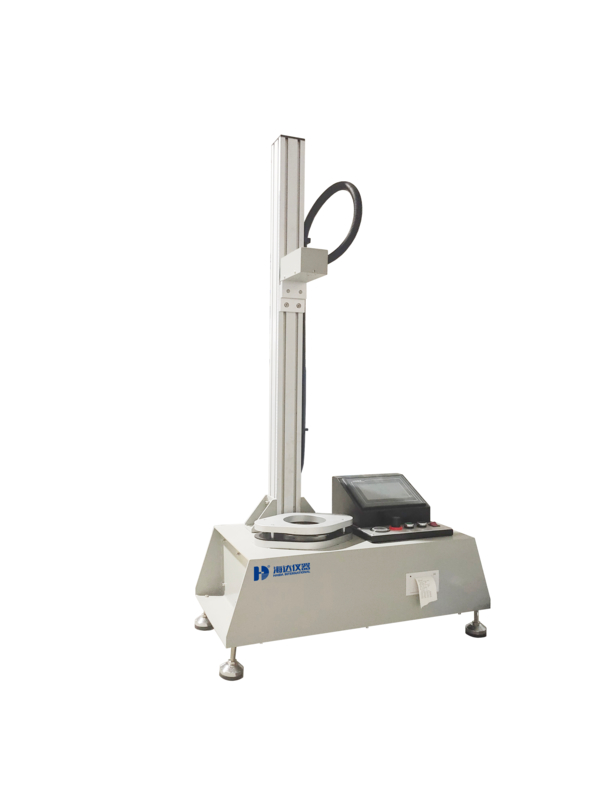

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.
Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm
Estimated Gross Weight: 130kg
Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)
| Test Item | Specification |
|---|---|
| Testing sample mass | Method A: 50-2000g; Method B: 300-2000g |
| Testing accuracy | 0.1g (0.1J) |
| Testing method | Method A & Method B (Option) |
| Specimen size | ＞150mm×150mm |
| Diameter of impacting head | Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm |
| Diameter of dart shaft | Ф6.5±0.1mm |
| Inner diameter of specimen fixture | 125±2 mm |
| Impacting height | Method A : 0-660mm, Method B: 0-1520mm |
| Weights | Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2 Method B: 15g*2, 45g*8, 90g*8, 300g*2 |
| Power | Single-phase 220V, 60Hz |
| Estimated Weight | 100kg |
| Specimen Fixture | Pneumatic |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
