รายละเอียดสินค้า:
|
| ช่วงสวิง: | R300 มม. | เกณฑ์การทดสอบ: | GB/T 4852, JIS Z0237 |
|---|---|---|---|
| มาตรฐานการผลิต: | ASTM-D1238, D3368, JIS-K7210 | เส้นผ่านศูนย์กลางล้อลูกกลิ้ง: | φ (150 ± 0.2) มม. |
| สภาพแสง: | แนะนํา CIE: 8 /d | แรงดันฉีด: | 1 ตัน |
| ขนาดเครื่องมือ: | 540 มม. × 520 มม. × 970 มม. | ผลิตภัณฑ์: | อุปกรณ์ทดสอบยาง |
| สูตรความแตกต่างของสี: | △ e*ab △ e*lch | แหล่งพลังงาน: | แบตเตอรี่ AA สองก้อน |
| การควบคุมลูกบอลที่ตกลงมา: | การควบคุมโซลินอยด์ DC | น้ำหนักค้อน: | 0.25kg-16kg |
| ปณิธาน: | ± 3% | ความแม่นยำของอุณหภูมิ: | ± 0.2 °C |
| ลูกม้วน: | ลูกเหล็ก |

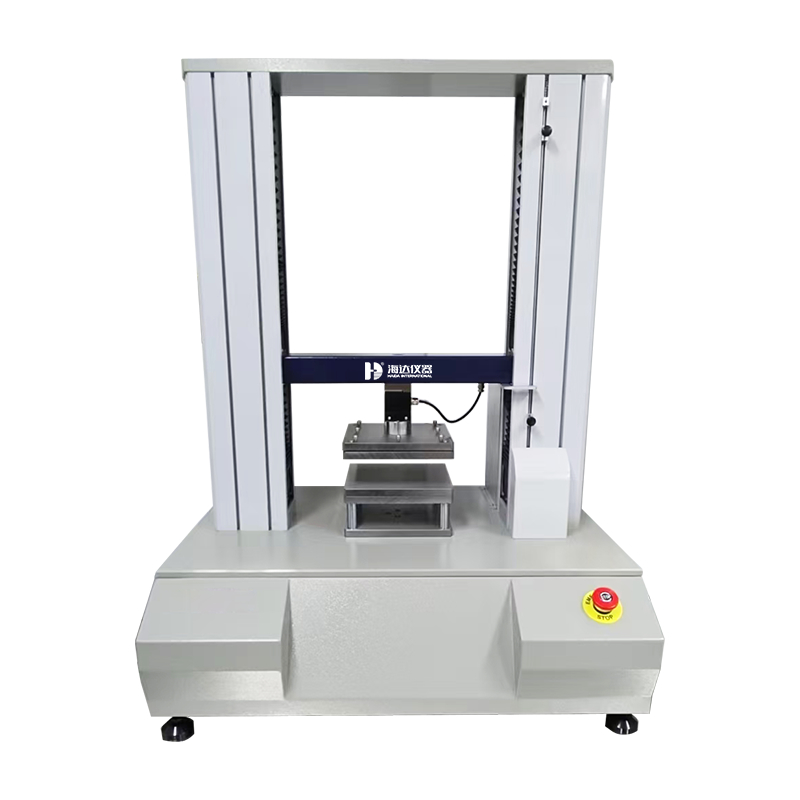

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.
It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.
ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453
Packaging Dimensions: (WxDxH) 1240 x 840x1320m
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 180kg
| Item | Description |
|---|---|
| Capacity | 500kg, imported load cell |
| Load resolution | 1/250,000 |
| Load Precision | Within ± 0.5% |
| Motor | 400W Panasonic servo motor |
| Operation Mode | Controlled by PC with software, Windows 10 operation |
| Test Speed | 0.1-500mm/min adjustable |
| Max. Stroke | 600mm (excluding fixture) |
| Test unit | gf/kgf/N/kN/lbf/T |
| Dimensions | (L*W*H)790 x 610 x 1100mm |
| Weight | Approx. 170 kg |
| Power | 1∮, 220V, 500W |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
