รายละเอียดสินค้า:
|
| ใบสมัคร: | การทดสอบแบตเตอรี่ | วิธีการเดินสาย: | AC สามเฟสสี่สาย |
|---|---|---|---|
| แสดง: | จอแอลซีดี | ปณิธาน: | 0.001V/0.001A |
| วิธีการเดินสาย: | AC 220V | ความละเอียดปัจจุบัน: | 1mA |
| อินเทอร์เฟซการสื่อสาร: | RS232/RS485/USB/อีเธอร์เน็ต | ช่วงปัจจุบัน: | 0-50A |
| แรงดันไฟฟ้า: | 380V | ความถี่ของแหล่งจ่ายไฟ: | 50 ± 5% Hz |
| ซอฟต์แวร์: | รวมอยู่ด้วย | พิมพ์: | ระบบการทดสอบ |
| THD: | <5% | เวลาสลับปัจจุบัน: | 20ms (-90% ~ 90% FS) |
| ความแม่นยำในการวัดอุณหภูมิ: | ± 1 ℃ | กระแสเอาต์พุต: | 300A/400A/600A/1000A/2000A/4000A |
| ความแม่นยำของแรงดันไฟฟ้า: | ± 0.02% FS | แรงดันไฟฟ้า: | 380 ± 10% VAC |
| แหล่งจ่ายไฟ: | AC 220V/50Hz | ความจุ: | 60V ~ 200V, 100V ~ 1500V |
| กำลังขับทั้งหมด: | 10kW-120kW | ขนาดตู้: | 600*850*1980 (w*d*h mm) |
Product Description

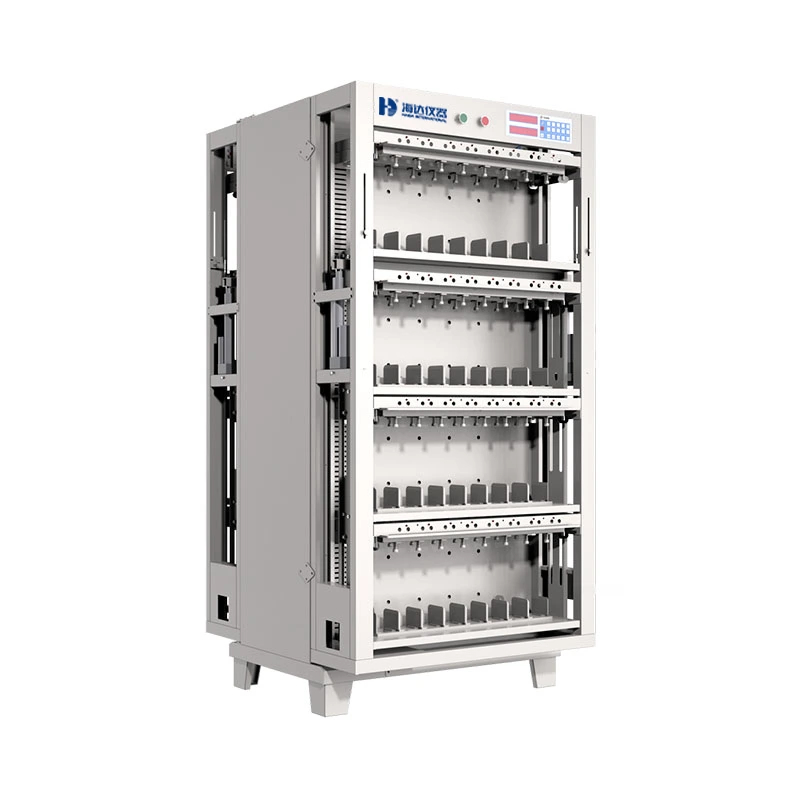

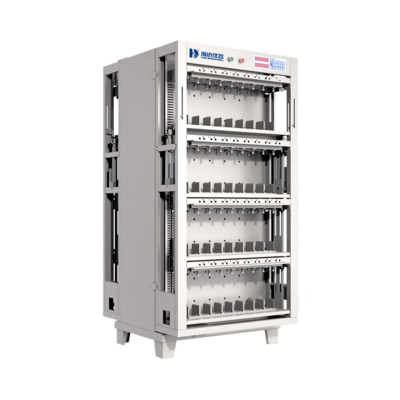

Battery Formation& Grading Machine 5V 200A For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.
Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.
Product Specifications
| Model | 8008-HD |
| Channels | 32 Channels |
| Voltage Range | DC0~5V |
| Voltage Accuracy | 0.1mV |
| Output Current Range | 200mA ~200A |
| Current Accuracy | 0.1mA |
| Jig Form | Push Down Four Wire Method Fixture |
| Fixture Spacing | 162mm |
| Battery Type | Prismatic Cell |
| Working Power Supply | Three-Phase Five-Wire Ac380V±10%, 50Hz |
| Ac Current Distortion Rate | ≤5% |
| Power Consumption | ≤13Kw |
| Power Factor | ≥0.99 |
| Charging Efficiency Of Whole Machine | ≥75% |
| Feeder Net Conversion Efficiency | ≥70% |
| Equipment Failure Rate | <1% |
| Work Environment | Temperature -10 ~ 40℃, Relative Humidity ≤80% |
| Heat-Dissipating Method | Natural Air Intake And Upward Exhaust |
| Control mode | Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system |
| Communication mode | 485 serial port communication (baud rate 57600)/TCP communication |
| Process setting | Up to 32 steps and 256 cycles can be set |
| Charge voltage | time Constant current, constant voltage, constant current constant voltage |
| Charge end conditions | Voltage, current, time, capacity, -△V |
| Discharge mode | Constant current, constant power, constant resistance |
| Discharge end conditions | Voltage, time, capacity |
| Time range | 0~3000 minutes/step, time unit is min |
| Time accuracy | <+1%60 |
Product Characteristics
Accurate sorting to ensure battery consistency Capacity sorting
1. High-precision measurement: ±0.5‰ current/voltage accuracy
2. Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded
3. Performance verification
-Cycle life test: Supports cyclic charging and discharging
-Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.
4. Data management
Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
