รายละเอียดสินค้า:
|
| Function: | compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument | Name: | paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument |
|---|---|---|---|
| Display: | LCD,Digital display | Feature: | easy to operate |
| Operation Method: | Automatic | Product Type: | Testing Instruments |
| Protection Device: | Induction type protection device | Control: | PLC control |
| Sensing Method: | Pressure Transmitter | Stop: | Stop test |
| Force Resolution: | 1/500000 of the maximum test force fs | Vibration Mode: | reciprocating |
| เน้น: | 5012-HD Permeability Tester,High Precision Diaper Permeability Tester |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Feature | Easy to operate |
| Operation Method | Automatic |
| Product Type | Testing Instruments |
| Protection Device | Induction type protection device |
| Control | PLC control |
| Sensing Method | Pressure Transmitter |
| Stop | Stop test |
| Force Resolution | 1/500000 of the maximum test force fs |
| Vibration Mode | Reciprocating |

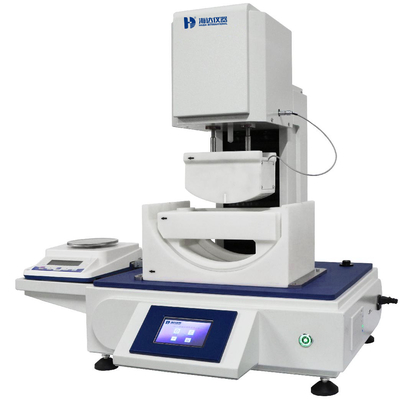

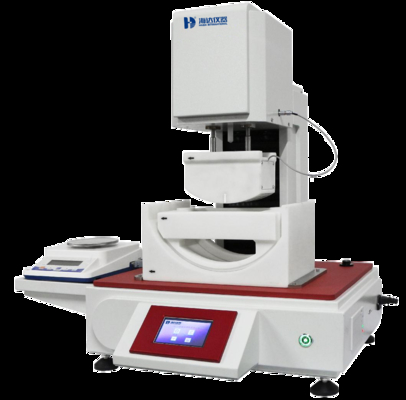

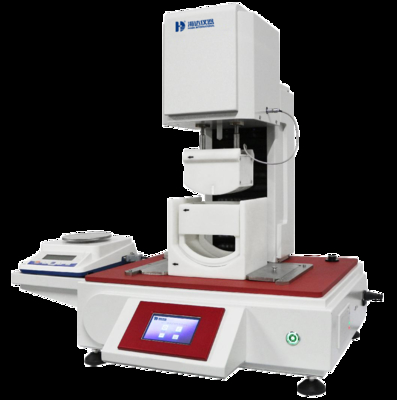

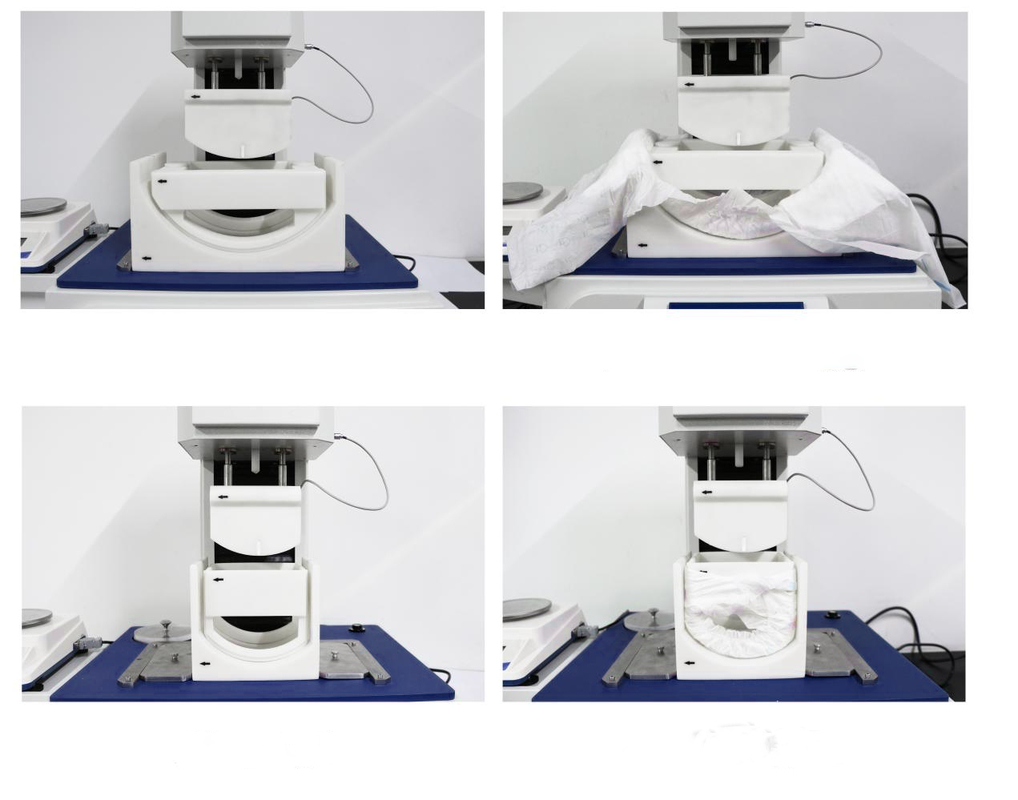

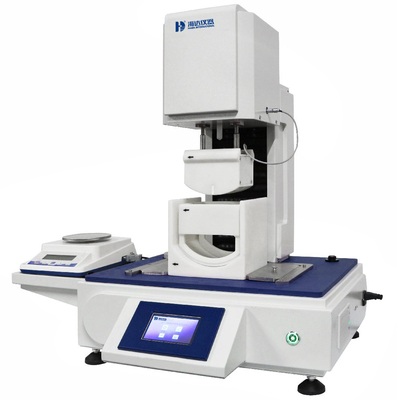

This tester is designed to measure the permeation properties of diapers and incontinence products, including absorption rate, re-wet amount, and leakage amount.
| Technical Index | 5012-HD |
|---|---|
| Accuracy of timing device | 0.01s |
| Liquid addition device | Add liquid volume deviation ± 2mL, add liquid flow rate: 200 ~ 800mL/min |
| Liquid addition tank capacity | 2L dosing volume |
| Baby Diapers | (40±2)ml/(60±2)ml/(80±2)ml |
| Baby disposable diaper | (30±2)ml/(40±2)ml/(50±2)ml |
| Adult Diapers | (100±2)ml/(150±2)ml |
| Adult disposable diaper | (70±2)ml/(100±2)ml |
| Hydraulic pressure strength | (2.0±0.2)kPa |
| Pressurized Pressure | (4.0±0.2)kPa |
