Name: Paper Tube Compressive Strength Tester with Digital LCD Display
Brand: Hai Da Labtester
SKU: HD-P006
Price: 7,500.00 USD
Availability: InStock

Paper Tube Compressive Strength Tester with Digital LCD Display

ภาพใหญ่ : Paper Tube Compressive Strength Tester with Digital LCD Display

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	Haida
ได้รับการรับรอง:	CE、ISO
Model Number:	HD-P006

การชำระเงิน:

Minimum Order Quantity:	1 set
ราคา:	สามารถต่อรองได้
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

ติดต่อ

Paper Tube Compressive Strength Tester with Digital LCD Display

ลักษณะ

Function:	compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument	Name:	paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display:	LCD,Digital display	Feature:	easy to operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction type protection device	Control:	PLC control
Sensing Method:	Pressure Transmitter	Stop:	Stop test
Force Resolution:	1/500000 of the maximum test force fs	Vibration Mode:	reciprocating
Test Cycles Setting:	4 digits pre-set counter
เน้น:	Paper Tube Compressive Strength Tester , Digital Paper Tube Compressive Strength Tester

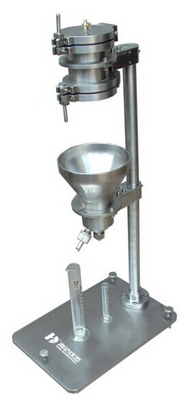

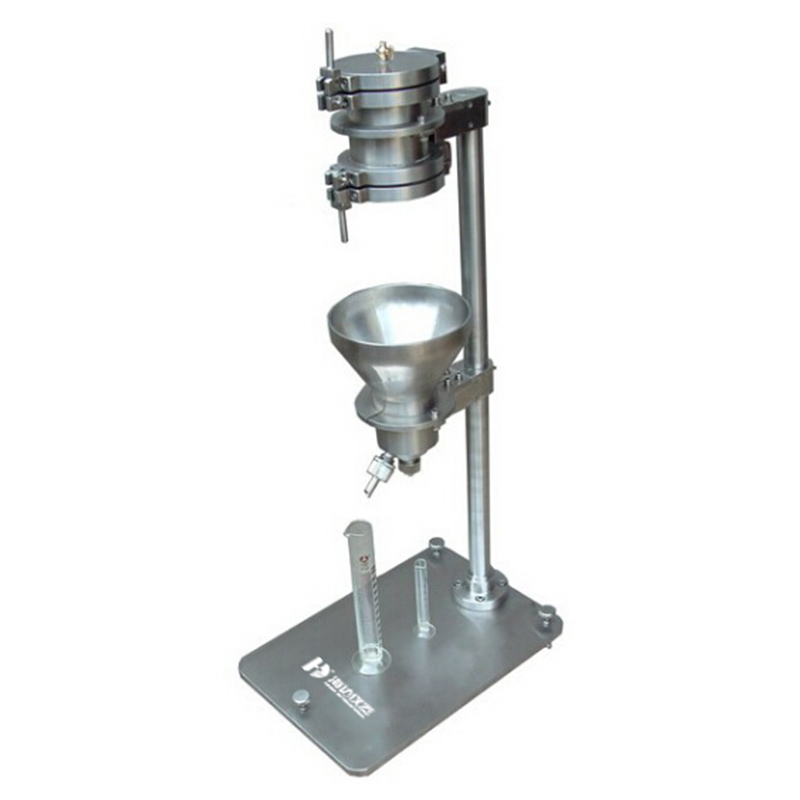

HD-P006 Canadian Standard Freeness Test Machine

Key Features

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Operation	Automatic
Control System	PLC control
Sensing Method	Pressure Transmitter
Force Resolution	1/500000 of the maximum test force fs
Protection	Induction type protection device

Technical Specifications

Measurement Range: (1-100°) SR
Minimum Scale: 1°SR
Water Temperature: 20±0.5 °C
Draining Time: 149±1 s
Water Volume: 1000ml
Residual Volume: (7.5-8)ml
Dimensions: 460×250mm

Standard Accessories

Measuring cylinder (2pcs), Copper net (1pc), Rubber gasket (1pc), Frame (1pc)

Product Description

The HD-P006 Canadian Standard Freeness Test Machine is designed for testing all types of suspending pulp liquid with freeness values less than 100°SR (Schopper-Riegler). This precision instrument features manual control for economical material usage and easy operation. Its parameters and performance comply with QB/T1054-98, GB/T3332-1982, and ISO5267/1 standards.
