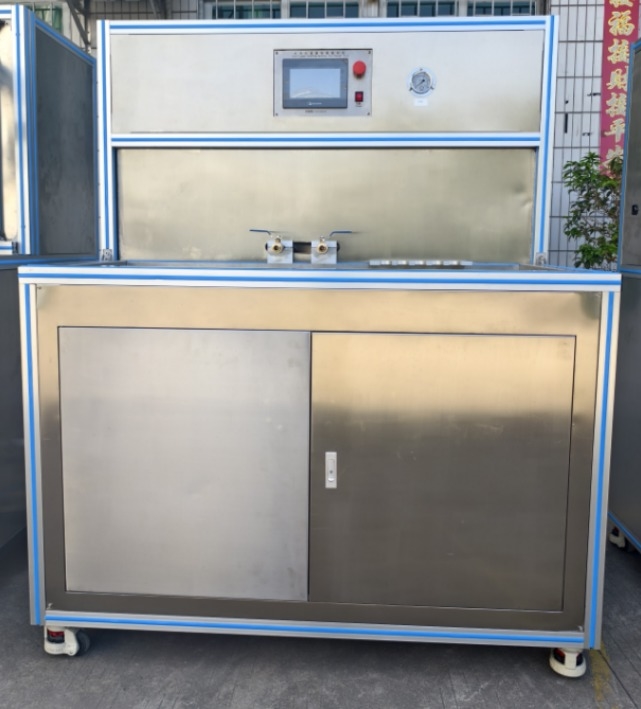

5072-HD Sanitary Tapware Flow Rate Test Machine for Cookware

5072-HD Sanitary Tapware Flow Rate Test Machine for Cookware
5072-HD Sanitary Tapware Flow Rate Test Machine for Cookware

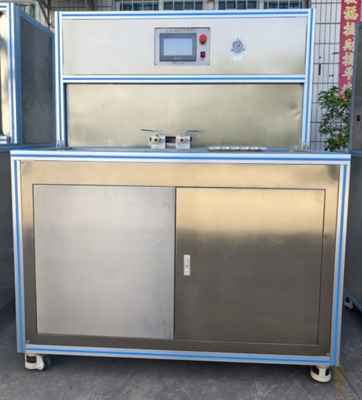

ภาพใหญ่ :  5072-HD Sanitary Tapware Flow Rate Test Machine for Cookware

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Haida
ได้รับการรับรอง: ISO
Model Number: 5072-HD
การชำระเงิน:
Minimum Order Quantity: 1 set
ราคา: สามารถต่อรองได้
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month

5072-HD Sanitary Tapware Flow Rate Test Machine for Cookware

ลักษณะ
heat source: Ceramic heater touch screen: LCD
Display: LCD screen Testing Time: Adjustable
Customized: Welcome Test Cyclic: 15000 cyclic (adjustable)
Factory: Yes Application: Laboratory, Kitchen
Transportation: By Sea Tank Body Matiral: PVC
Testing Methods: Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. Testing Parameters: Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Fixture: two fixtures suitable different cutlery Weight: Unspecified
Leverage: 1 m Torque Rod Diameter: 10±1mm
Usage: Testing Cookware Power: 1 phase, AC 220V, 50~60Hz
Customer: More than 500+ Temperature Range: Room Temperature - 300°C
Test Load: 50N Clamp Strength: 130 + 2.5N
Heating Method: Electric Heating Applicable Standards: EN ISO 8442-5
Test Mass: 1KG Scale Display: 1 degree
เน้น:

Cookware Flow Rate Test Machine

,

Flow Rate Test Machinery

5072-HD Sanitary Tapware Flow Rate Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD screen
Testing Time Adjustable
Test Cyclic 15000 cyclic (adjustable)
Application Laboratory, Kitchen
Tank Body Material PVC
Testing Methods Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test
Testing Parameters Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion
Fixture Two fixtures suitable for different cutlery
Power 1 phase, AC 220V, 50~60Hz
Temperature Range Room Temperature - 300°C
Applicable Standards EN ISO 8442-5
Applications & Test Purpose
This machine is designed for faucets to undergo flow cycle tests under different temperature changes to detect product quality.
Test Standards: ASME, A112.181.1-2005, CSAB125.1-05, GB18145, EN817
Standard Features
  • Hot and cold water unit: 1 set of 500L
  • Water tank: Normal temperature water
  • Flow function: 0 to 200PSI adjustable, flow reading accuracy > 0.01L
  • Test sample: One piece
  • Test working pressure: 0-16 BAR
  • Working hours: Adjustable up to 99h59m59s
  • Return water condition: Water pump with pressure accuracy > 0.1bar
  • Control mode: PLC software with 7" color touch screen
  • Material: 304# Stainless steel
  • Voltage: 380V, 50HZ
  • Total power: 3KW
Operation Features
  • Input pressure controlled by MPA or BAR on display screen
  • Outlet pipe size: 1 inch with two G3/4 outlets inside equipment
  • Water outlet at same height as work surface
  • Automatic water replenishment with float ball system
  • Equipped with cleaning system and additional drainage system
About Haida International Equipment
Established in 2004 and located in Dongguan, China, we specialize in production and R&D of material testing equipment with independent research center and four production lines for textile, footwear, leather, and mask testing equipment.
Customer Testimonials
Why Choose Haida?
  • Design & Production: Custom solutions, cost-performance recommendations, special R&D
  • Shipping & Delivery: One-stop service from production to installation
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time, video inspection and on-site service
Frequently Asked Questions
Q: How about your warranty?
A: 1 year warranty with technical support and parts replacement. On-site engineer service available if needed.
Q: What is the order process?
A: Inquiry → Quotation → Requirements confirmation → Order → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After Service.
Q: Can we visit your factory before order?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you accept customization service?
A: Yes, we offer both standard and customized machines tailored to your requirements.
