รายละเอียดสินค้า:
|
| heat source: | Ceramic heater | touch screen: | LCD |
|---|---|---|---|
| Display: | LCD screen | Testing Time: | Adjustable |
| Reply For Probme: | Within 24 hours | Test Parameters: | Temperature, pressure, weight, etc. |
| Test Results: | Quantitative and qualitative data | Test Methods: | Impact, abrasion, chemical resistance, etc. |
| Scale Display: | 1 degree | Usage: | Testing cookware for durability and safety |
| Steel Impact Hammer: | Having a mass of 1KG ±50g | Customized: | Welcome |
| Test Cyclic: | 15000 cyclic (adjustable) | Factory: | Yes |
| Application: | Laboratory, Kitchen | Transportation: | By Sea |
| Certifications: | CE, ISO | ||
| เน้น: | LCD Touch Screen Pressure Test Machine,Toilet Seat Cover Pressure Test Machine |
||
| Attribute | Value |
|---|---|
| Heat Source | Ceramic heater |
| Display | LCD screen |
| Testing Time | Adjustable |
| Response Time | Within 24 hours |
| Test Parameters | Temperature, pressure, weight, etc. |
| Test Results | Quantitative and qualitative data |
| Test Methods | Impact, abrasion, chemical resistance, etc. |
| Scale Display | 1 degree |
| Steel Impact Hammer | 1KG ±50g mass |
| Test Cycles | 15000 cycles (adjustable) |
| Certifications | CE, ISO |

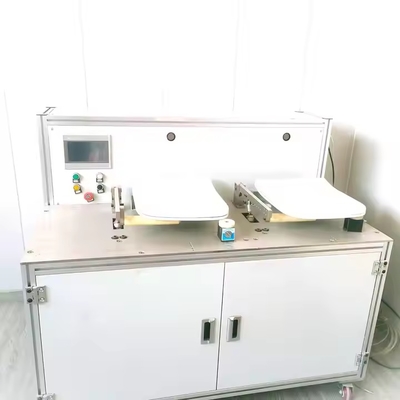

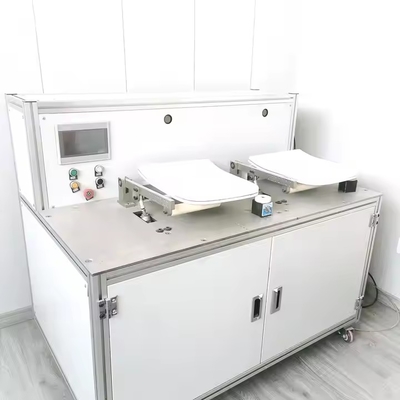

This machine simulates the action of opening and closing a toilet seat cover. It lifts the cover 90 degrees, releases it to the fully open position, then forces it to fall with strong impact. This cyclic action tests product durability while recording test counts via an electronic digital counter. The test automatically stops when the sample is damaged or reaches the preset cycle count.
JC/T 764-2008 5.4.7
| Test stations | 2 stations |
| Test cycles | 0-999,999 programmable |
| Test frequency | 5-15 times/min |
| Opening angle | 0-120° programmable |
| Opening pause time | 0.1-99s programmable |
| Opening/pressure mode | Cylinder |
| Push cover position | Intermediate parts |
| Control mode | PLC |
| Operation mode | Touch Screen |
| Power supply | 220V 50HZ |
| Air source | 0.4-0.6Mpa |
Established in 2004 and located in Dongguan, China, Haida specializes in R&D and production of material testing equipment. With independent R&D centers and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
