รายละเอียดสินค้า:
|
| เทอร์โมคัปเปิล: | เทอร์โมคัปเปิลสาย K-type (Nicr/Nial) ที่มีปลอกเส้นผ่านศูนย์กลาง 0.5 มม. | จับเวลา: | ช่วงที่ปรับได้: 0.01-99.99 วินาที |
|---|---|---|---|
| กว้าง: | Ø5.50± 0.01 มม. | ความยาว: | 8.80 ± 0.02 มม. |
| มุมเอียง: | 45 ± 0.5 ° | มวล (ก่อนเจาะ): | 1.76G ± 0.01G |
| วัสดุ: | ทองแดงอิเล็กโทรไลติก | ปลายผิว: | ขัดอย่างเต็มที่ |
| เน้น: | Adjustable Timer Flammability Testing Equipment,Accurate Flammability Testing Equipment |
||

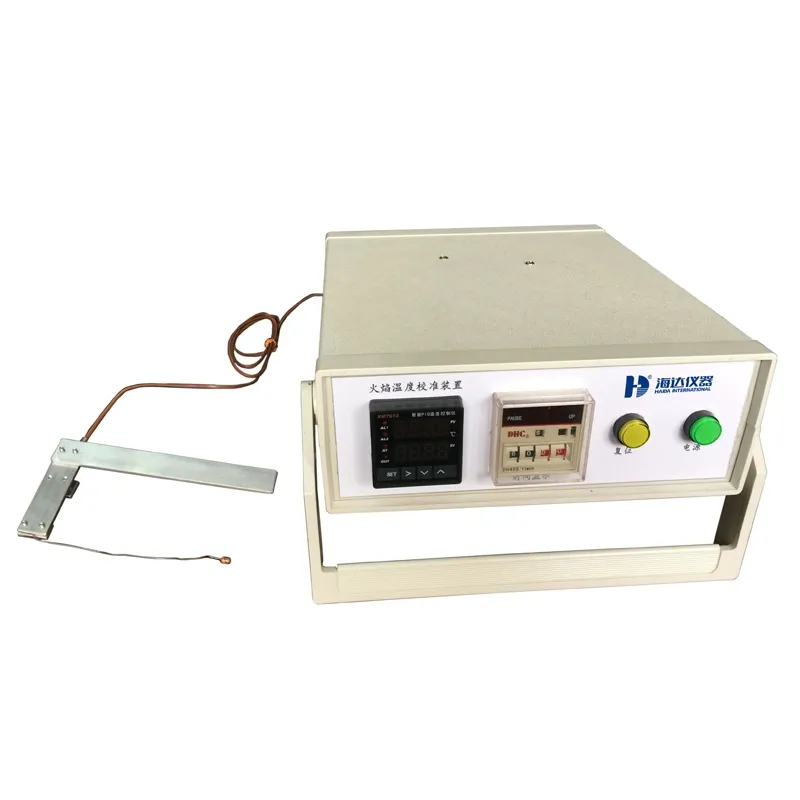

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.
Position the copper block 10±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 44±2 seconds to validate the flame for testing. Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.
| Model | 6014-HD |
| Thermocouple | Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath |
| Timer | Adjustable range: 0.01-99.99 seconds |
| Copper Block Specifications | |
| Diameter | Ø5.50±0.01mm |
| Length | 8.80±0.02mm |
| Bevel Angle | 45±0.5° |
| Mass (Pre-drilling) | 1.76g±0.01g |
| Material | High-conductivity electrolytic copper |
| Surface Finish | Fully polished |
