รายละเอียดสินค้า:
|
| ปริมาณห้อง: | ≥0.5m³พร้อมประตูสังเกตการณ์แก้ว | พลังงานไฟฟ้า: | AC 220V, 50Hz, 1KVA |
|---|---|---|---|
| ระยะเวลาการทดสอบ: | ช่วงที่ปรับได้: 0.01-99.99 วินาที/นาที/ชั่วโมง | รอบการทดสอบ: | สามารถตั้งถิ่นฐานได้ล่วงหน้า: 1-999,900 รอบ |
| แรงไฟฟ้า: | ขั้วไฟฟ้าแพลตตินัมสี่เหลี่ยมแต่ละตัวใช้ 1.0n ± 0.05N กับตัวอย่าง | ||
| เน้น: | construction material testing equipment,Tracking Index Test Machine,Comparative Tracking Index Test Machine |
||
Under humid or contaminated conditions, leakage currents may occur between live parts of opposite polarity or between live parts and grounded metal components, leading to arcing, material erosion, short circuits, or even ignition.

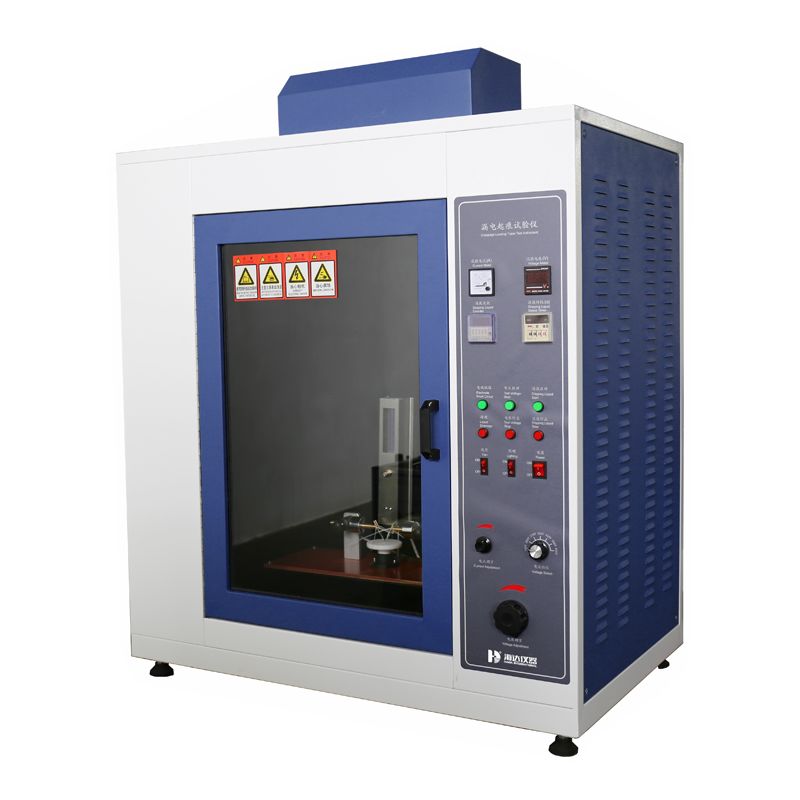

This tester simulates such scenarios to conduct destructive testing on insulating materials, evaluating their relative resistance to tracking under specified voltages in the presence of electric fields and contaminated water. It is suitable for solid insulating materials and products in electrical/electronic equipment and household appliances, such as relay sockets, switch covers, and contactor housings.
| Model | 6006-HD |
| Chamber Volume | ≥0.5 m³, with a glass observation door |
| Electrical Load | Adjustable test voltage: 100-600V. Short-circuit current: 1A ±0.1A with ≤10% voltage drop. Overcurrent relay trips at 0.5A ±10% (2s tolerance ±10%), triggering an audible alarm for failed samples (reset via voltage stop). |
| Electrode Force | Rectangular platinum electrodes, each applying 1.0N ±0.05N to the sample. |
| Test Duration | Adjustable range: 0.01-99.99 seconds/minutes/hours. |
| Test Cycles | Pre-settable: 1-999,900 cycles |
| Droplet System | Droplet height adjustable: 30-40mm. Mass of 50 droplets: 0.997-1.147g; 20 droplets: 0.380-0.480g. Droplet interval: 30±5 seconds (configurable). |
| Key Features | Stainless steel/brass construction with platinum-plated electrodes (high-temperature/corrosion-resistant). Precise droplet counting, stable control system, integrated ventilation, and lighting for clear observation and fume extraction. |
| Power Supply | AC 220V, 50Hz. |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
