High / Low Temperature Thermal Shock Chamber with Touch Panel Controller
Thermal Shock Chamber.pdf
1. Description:
Three-Zone Hot and Cold Thermal Shock Resistance Test Chamber is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.The TFT LCD touch panel controller was made in Japan, can display Chinese / English. Big size TFT LCD panels are also adopted.High formula memory capacity can be set to 120 patterns. The maximum cycle setting is 9999 times. The maximum setting of each section is 999 Hrs 59 Mins.Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.Both 2 zone and 3 zone shocks can be chosen.All equipments are fully automatic, and all process are precisely controlled with PLC.If any parts have errors, the machine will automatically shuts down and a warning light switches on.Machine can be shut down automatically in case of electrical power instabilities.
2. Specifications of Three-Zone Hot and Cold Thermal Shock Resistance Test Chamber:
|
System
|
Two-zone test by means of damper switching
|
|
Three-zone chamber
|
|
Model
|
HD-E703-50A/HD-E703-50W
|
HD-E703-100A/HD-E703-100W
|
Customized
|
|
Performance
|
Test area
|
High temp. exposure range*1
|
+60~ to +200°C
|
|
Low temp. exposure range*1
|
-65to 0 °C
|
|
Temp. fluctuation *2
|
±1.8°C
|
|
Hot chamber
|
Pre-heat upper limit
|
+200°C
|
|
Temp. heat up time*3
|
Ambient temp. to +200°C within 30min
|
|
Cold chamber
|
Pre-cool lower limit
|
-65°C
|
|
Temp. pull down time*3
|
Ambient temp. to -65°C within 70min
|
|
Temp. recovery (2-zone)
|
Recovery conditions
|
Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)
|
|
Temp. recovery time
|
Within 10 min.
|
|
Construction
|
External material
|
Cold-rolled rust-proofed steel plate
|
|
Test area material
|
SUS304 stainless steel
|
|
Door*4
|
Manually operated door with unlock button
|
|
Heater
|
Strip wire heater
|
|
Refrigeration unit
|
System*5
|
Mechanical cascade refrigeration system
|
|
Compressor
|
Hermetically sealed scroll compressor
|
|
Expansion mechanism
|
Electronic expansion valve
|
|
Refrigerant
|
High temp side:R404A, Low temp side R23
|
|
Cooler
|
Stainless steel welded plate heat exchanger
|
|
Air circulator
|
Sirocco fan
|
|
Damper driving unit
|
Air cylinder
|
|
Fittings
|
Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal
|
|
Inside dimensions (W x H x D)
|
350 x 400 x 350
|
500 x 450 x 450
|
Customized
|
|
Test area capacity
|
50L
|
100L
|
Customized
|
|
Test area load
|
5 kg
|
10 kg
|
Customized
|
|
Outside dimensions (W x H x D)
|
1230 x 1830 x 1270
|
1380 x 1980 x 1370
|
Customized
|
|
Weight
|
800kg
|
1100kg
|
N/A
|
|
Utility requirements
|
Allowable ambient conditions
|
+5~30°C
|
|
Power supply
|
AC380V, 50/60Hz, three phase , 30A
|
|
Cooling water supply pressure*6
|
02~0.4Mpa
|
|
Cooling water supply rate*6
|
8m³ /h
|
|
Operating cooling water temp. range
|
+18 to 23 °C
|
|
Noise Level
|
70 dB or lower
|
Notes
1. If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option
2. If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”
3. Temperature heat-up/pull down time are applicable only during independent chamber operation
4. If the automatically operated sliding door required, please select the “Automatically door package”
5. Air-cooled condenser / Water-cooled condenser both available
6. Apply on water-cooled condenser only
3. Safety Devices of Three-Zone Hot and Cold Thermal Shock Resistance Chamber:
- Hot chamber overheat protection switch
- Cold chamber overheat protection switch
- Air circulator overload alarm
- Refrigerator high/low pressure protector
- Compressor temperature switch
- Air pressure switch
- Fuse
- Water suspension relay ( water-cooled specification only)
- Compressor circuit breaker
- Heater circuit breaker
- Test area overheat/overcool protector
- Air purge valve
Control
(Color LCD interactive touch-screen system)
Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.
|
Setting
|
Interactive key input by touch panel
|
|
Display
|
LCD (5.7 inches)
|
|
Temperature control function
|
Test area: exposure temp.
Hot chamber: pre-heating temp.
Cold chamber: pre-cooling temp.
|
|
PID control
|
|
Preset temperature range
|
High temperature: 60 to200’C
Low temperature: -78 to 0’C
|
|
Setting resolution
|
1’C
|
|
Input
|
Thermocouple type T (Copper/Copper-Nickel)
|
|
Setting and indication ranges
|
Preset time: 0 min. to 99 hours and 59 min.
Preset cycle: 1 to 9,999 cycles
|
|
Accessory function
|
Timer preset
Overheat/ overcool protection
Power failure/ recovery selection
Temperature recovery time setting
Program memory
Automatic power shut-off
Programmed time display
Test completion mode selection
Trend graph
Alarm history display
Sensor calibration
RS-232/ USB communication
|

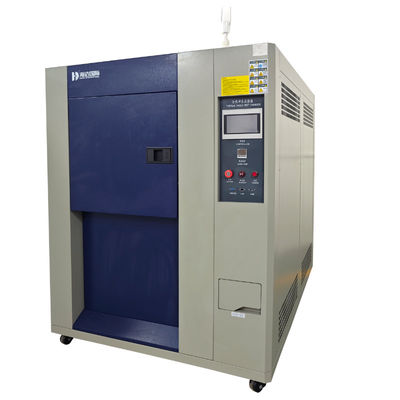

4. Three-Zone Hot and Cold Thermal Shock Resistance Test Chamber view:
(The Test Chamber)
